Description

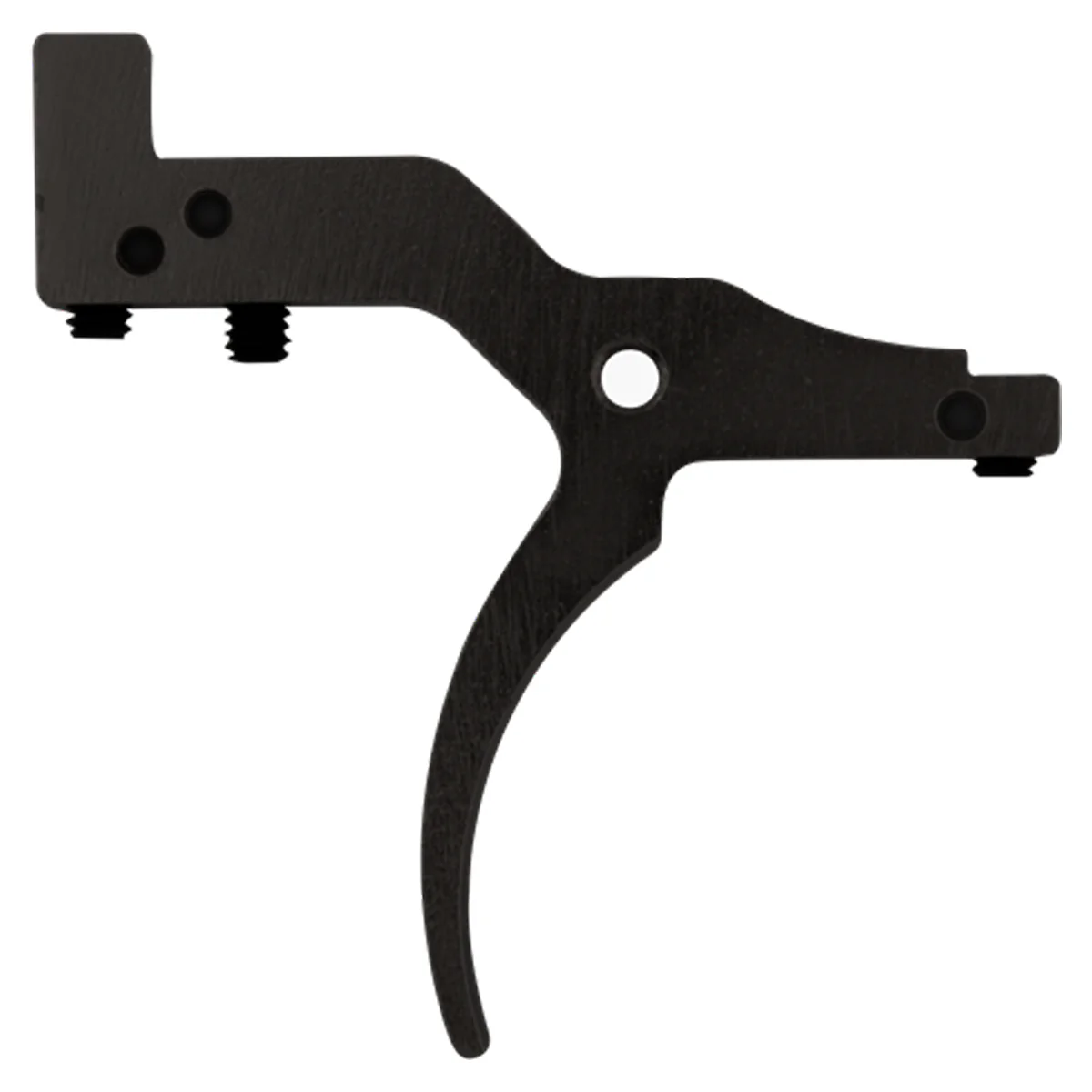

Timney is the forefront brand for replacement triggers for Savage rifles. This genuine drop-in trigger comes factory-calibrated for immediate use or can be fully adjusted to control sear engagement (creep) and pull weight. With this trigger, you can achieve a higher level of precision with your rifle without requiring the assistance of a gunsmith. It can easily be installed and adjusted to your preference, with a range of 1.5-4 lbs. It is ready for use straight out of the box or can also be adjusted for a personalized shooting experience.

Trigger Adjustment Tips

TRIGGER ADJUSTMENT GUIDE OVERTRAVEL:

1. Remove the ammunition source and double-check to ensure the chamber is empty. Pointing the barrel away from yourself, dry fire the trigger

2. Carefully tighten the overtravel screw in until it hits the trigger, then back it out about 1/6 of a turn (or one flat of the hex wrench).

3. It should move freely and fire with ease. You shouldn’t have to “chase” the trigger more than about .015.

PULL WEIGHT ADJUSTMENT:

NOTE: Please be careful as you adjust the pull weight. It is important that you do NOT take the pull weight too low; it must maintain spring pressure or else it will bump/slam fire. When you pull the trigger, with the bolt open, the trigger’s spring should return it to the neutral position; if it doesn’t, then you do not have enough spring pressure.

1. To adjust spring pressure, turn the screw clockwise until you can feel the pressure of the spring on the actual trigger lever.

Specs

Adjustable Trigger	Yes
Trigger Pull	1.5 lbs - 4 lbs
Style	Curved
Material	Steel
Finish	Black
Compatible With	Savage Rifles
Manufacturer Warranty	Lifetime warranty
